In brief
The simulation keeps a record of every reflection and its properties; this is why the filters can be changed later without calculating again. Reflections that are hidden or lie outside the field of view are recorded too; only the report decides whether they count.
Every geometrically possible reflection from Ch. V.3 is stored as a reflection event, per time step, direction and PV area:
| Content | Values |
|---|---|
| Time | day of the year, minute of the day |
| Direction | azimuth and elevation as the observer sees them |
| Brightness | luminance and illuminance |
| Gaze axis | distance to the gaze axis, for points with a field of view |
| Flags | occlusion per cause (obstacle, terrain, horizon) and path, outside the field of view, specular |

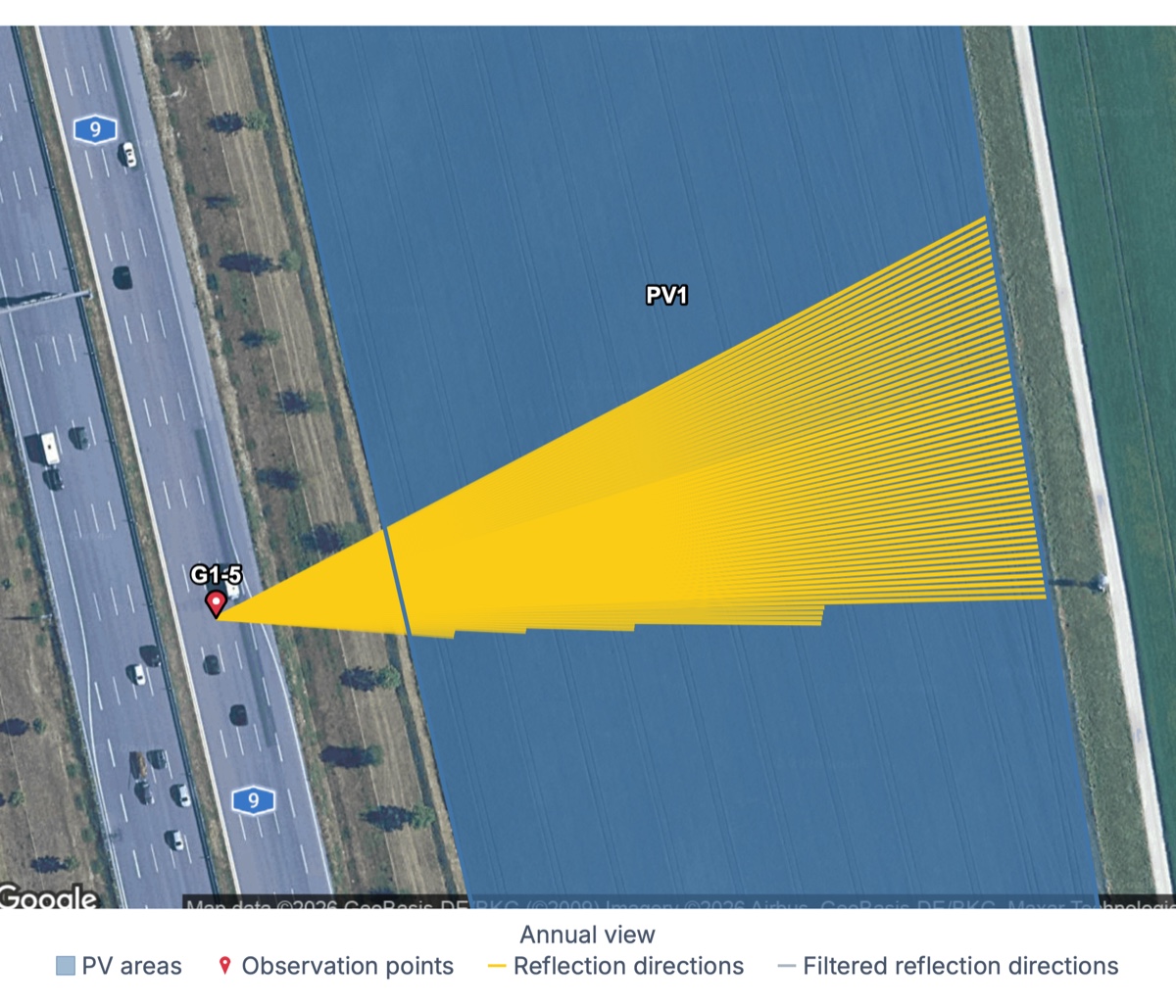

Solar position and vertical extent are held in summaries per time step and PV area. All figures, charts and Excel detail data in the report are based on these data, for every filter setting (Ch. V.8). How the reflection map shows the directions: Ch. 14.
Details: how the data are stored
- The direction is the centre of an output cell of 0.5°, 0.25° or 0.125° (Ch. V.2); the assessment is made on 0.5°.
- The illuminance is stored via the solid angle of the cell.
- The summaries are created for each combination of the filters "Obstacle", "Terrain", "Horizon" and "Outside field of view", i.e. 16 combinations: highest luminance, summed illuminance, vertical extent and smallest distance to the gaze axis. Simulations that do not record the causes of occlusion separately carry eight combinations of the three flags blocked, shaded and outside the field of view. From these, the report evaluates every filter combination cell by cell without reading the raw data again.
- Very large data volumes per observation point, for instance directly next to large areas, are not stored in full as raw data. The summaries are then created day by day with the same calculation; the view of individual moments recalculates the selected day when needed. If the calculation state has changed since the simulation, this day may differ from the annual values; the report points this out, and a new simulation brings the two back into line.
